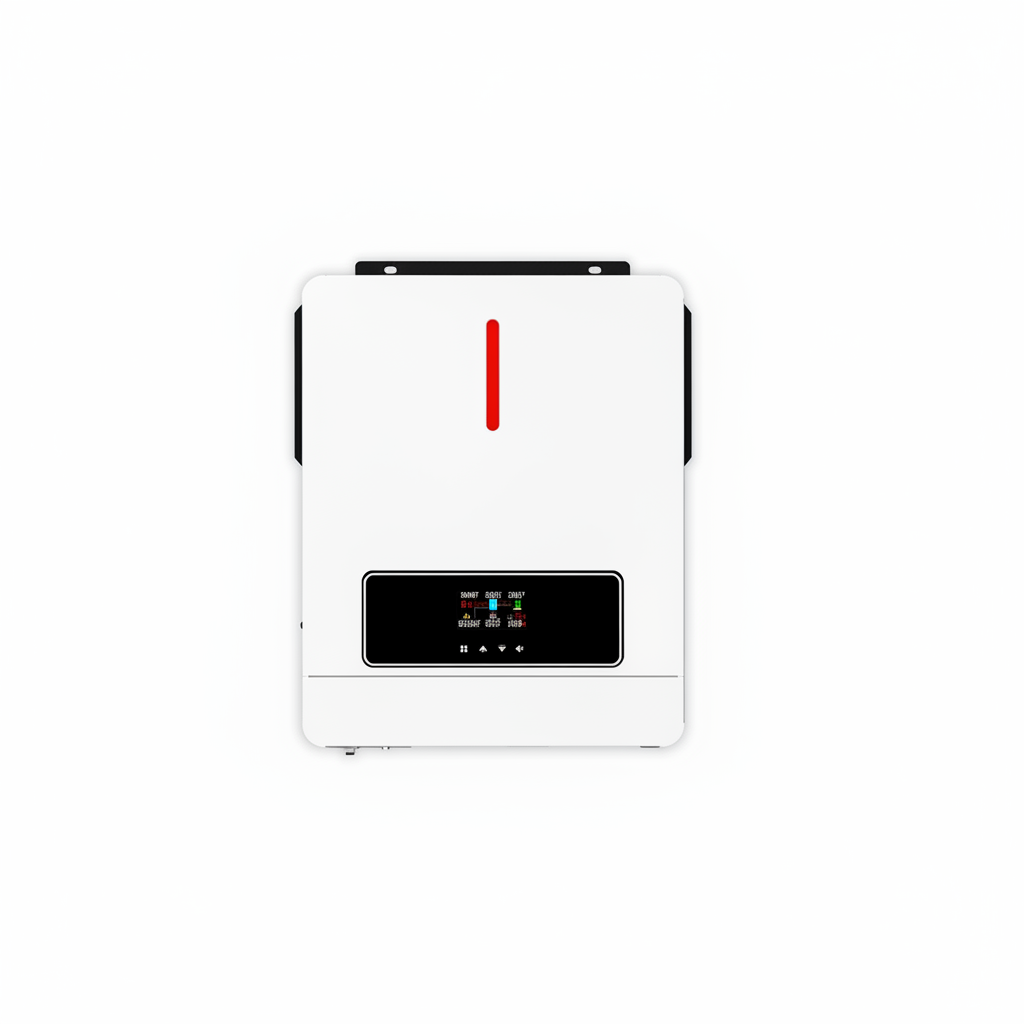

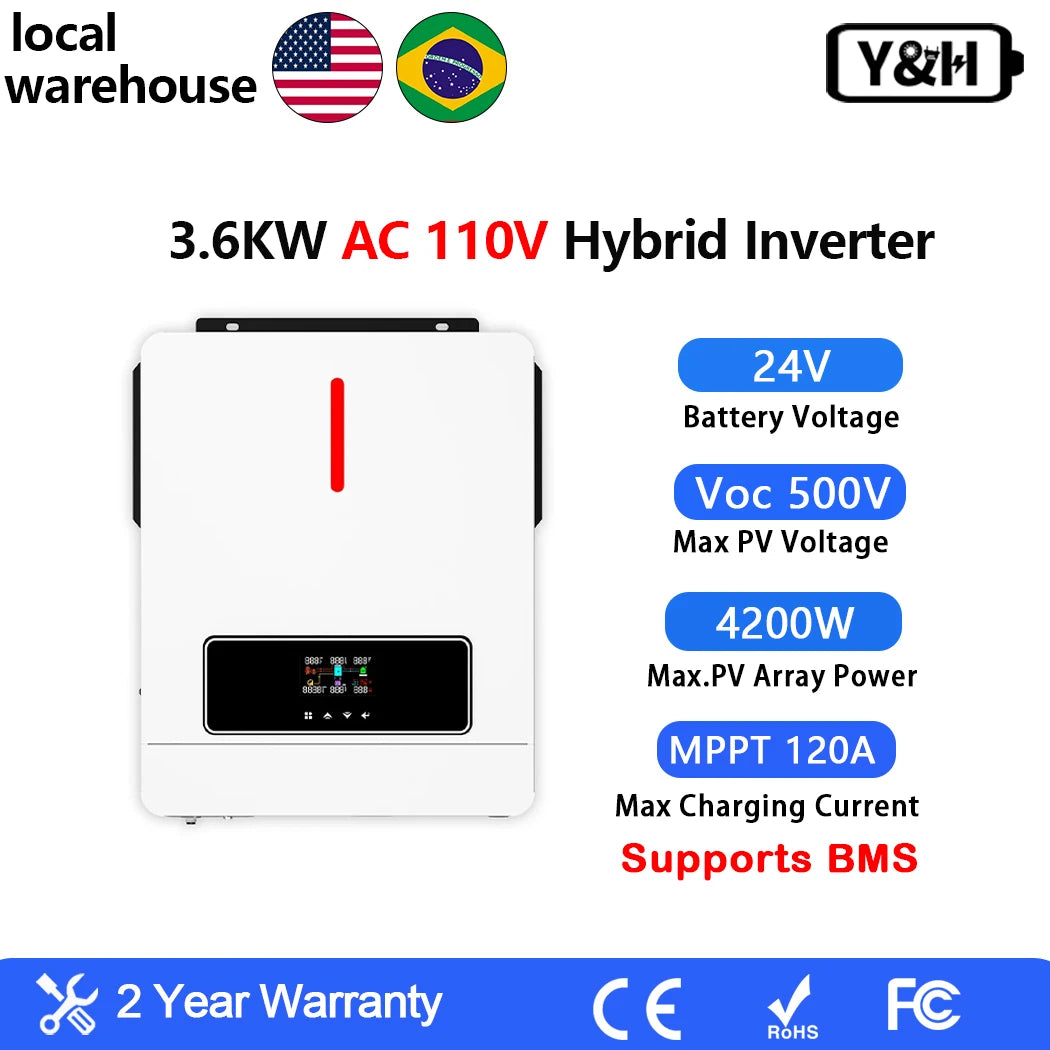

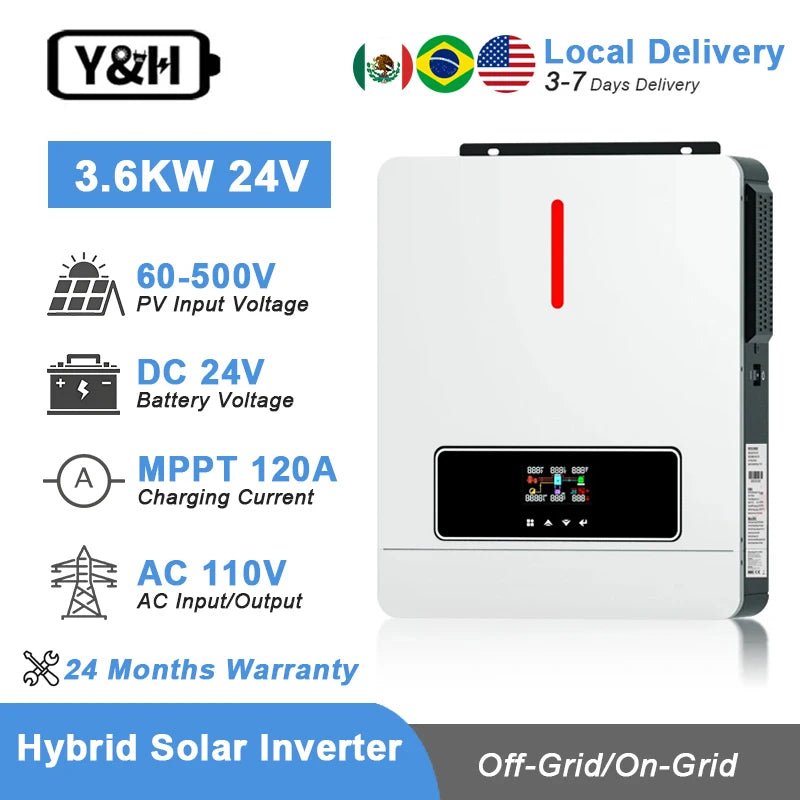

3600W Hybrid Solar Inverter 24VDC 120VAC Off-Grid On-Grid Inverter Pure Sine Wave 120A MPPT Solar Charge Controller

The 3600W Hybrid Solar Inverter 24VDC 120VAC Off-Grid On-Grid Inverter Pure Sine Wave 120A MPPT Solar Charge Controller combines an inverter, solar charger, and battery charger in a compact system designed for on-grid and off-grid power applications. It delivers pure sine wave output, supports multiple 24V battery types, and can operate without a battery. The LCD display and configurable controls provide access to charging current, AC or solar charging priority, and input voltage settings.

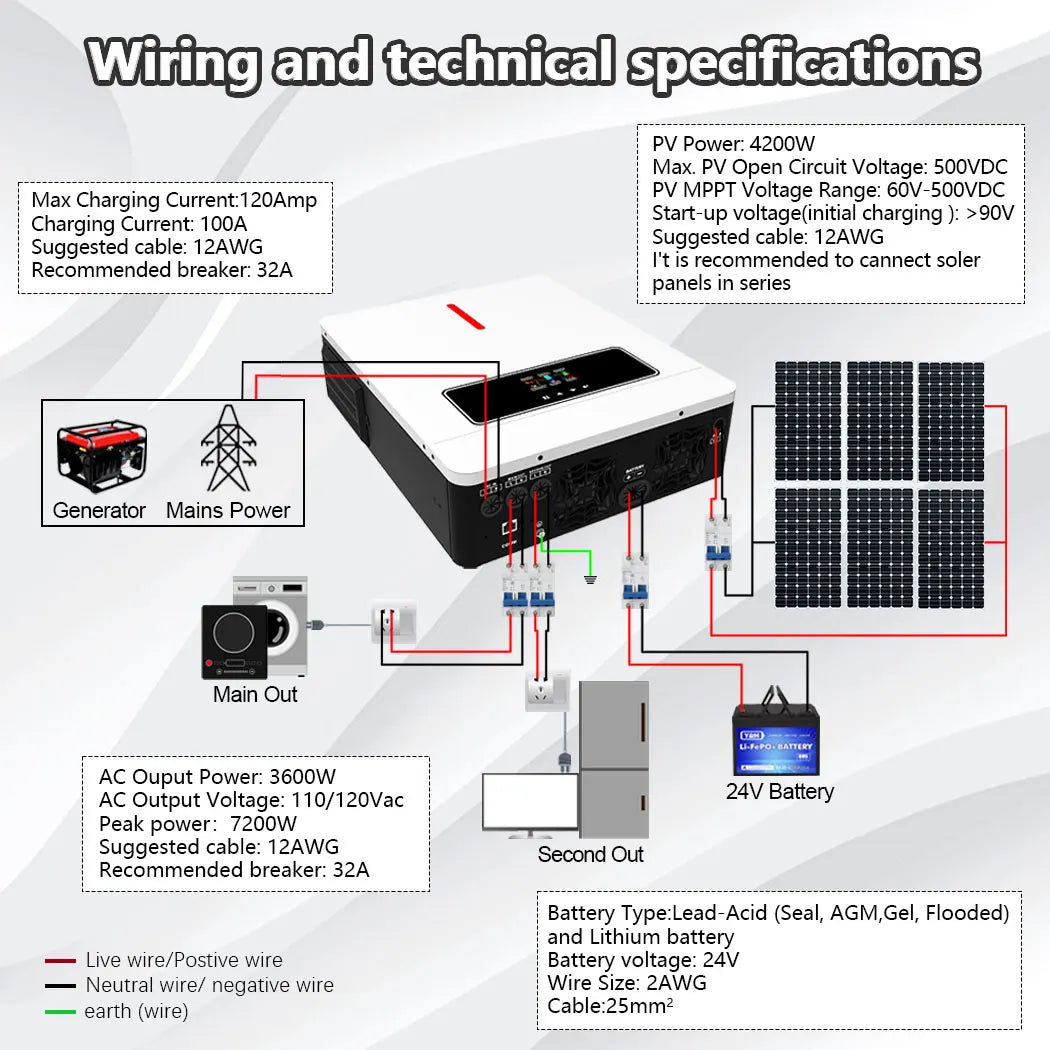

Specifications

• Rated Output Power: 3.6KW

• Inverter Type: Hybrid on-grid and off-grid inverter

• Output Waveform: Pure sine wave

• Output Type: Single

• Output Frequency: 50Hz/60Hz

• AC Voltage: 110V

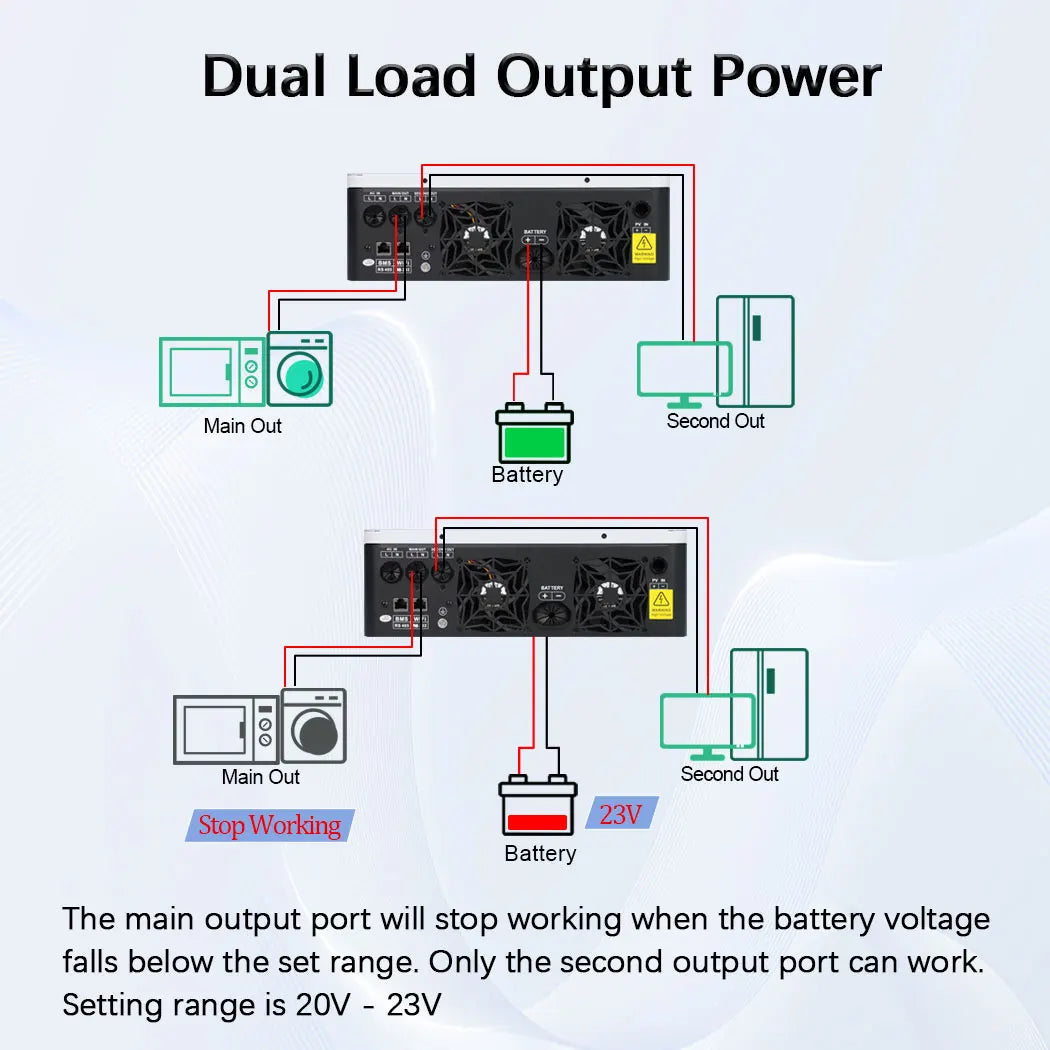

• AC Output: 110V/120V dual output

• Battery Voltage: 24V

• Battery Compatibility: AGM, gel, lead-acid, lithium-ion, and lithium iron phosphate batteries

• Solar Charger: Built-in 120A MPPT solar charge controller

• Maximum Charging Current: 120A AC and solar combined

• PV Input Voltage Range: 90–450VDC

• Maximum PV Voltage: 500V

• Dimensions: 50.5 x 42.5 x 8.5 cm

• Weight: 9.7 kg

• Model: NM-ECO

• Certification: CE

• Voltage Classification: High voltage, above 50VAC or 75VDC

Features

• Multifunction Power System: Combines inverter, solar charging, and battery charging functions in one unit.

• Battery-Free Operation: Supports operation without a connected battery.

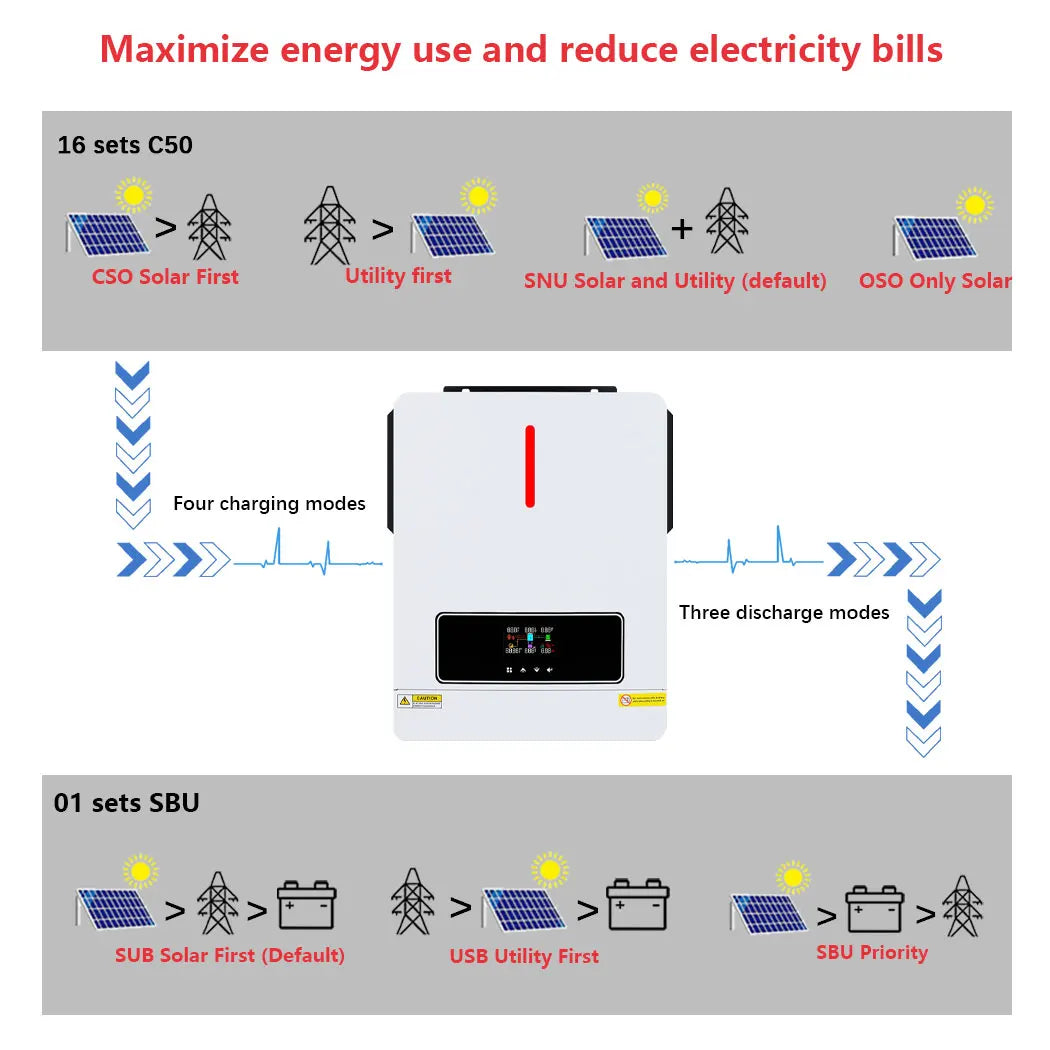

• LCD Control Display: Provides configurable settings for battery charging current, charging priority, and input voltage.

• Wireless Monitoring: Wi-Fi and GPRS connectivity are available for iOS and Android devices.

• Factory Reset Function: Supports one-key restoration to factory settings.

• Lithium Battery Activation: Includes built-in automatic lithium battery activation.

• Battery Charge Management: Smart charging controls are designed to manage compatible batteries.

• Battery Protection: Includes short-circuit protection and overvoltage and undervoltage protection.

• Environmental Protection: Features a built-in anti-dust kit for use in harsh environments.

• Smart Device Support: Designed with smart monitoring and control capabilities.

Operating Sequence

• Before Startup: Do not turn on each input at the same time. Allow the inverter to operate for 3 minutes to reach stable operation.

• Startup Sequence: Connect the battery, activate the AC input or PV input, and then connect the load.

• Shutdown Sequence: Disconnect the load, disconnect the AC input or PV input, turn off the inverter, and then disconnect the battery.
